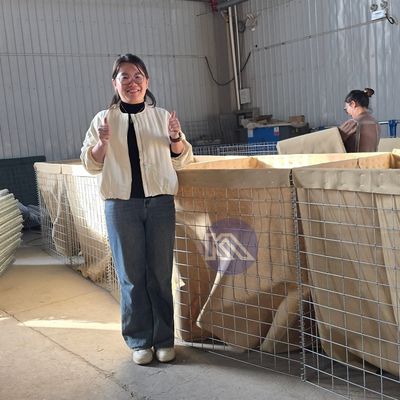

Defensive Barrier Galvanized Welded Mesh 5mm Wire 300 Gsm Geotextile Lined Earth Filled Military Gabion Box For Army Bunkers
Defensive Barrier / Military Gabion Box / Hesco Bastion / Blast Wall It is a prefabricated, multi-cellular system, made of Galvanized welded mesh and lined with non-woven geotextile. Units can be extended and joined using the provided joining pins. It is easy installed with using minimal manpower and commonly available equipment. After extended, it is filled into sand,stone,then Welded Gabion barrier like a defence wall or bunker,it is widely used for military fortification and flood control.Accessories Supplied With Carrier Units.
-
Wire Mesh Specification
-
Wire diameter: 5 mm (±0.1 mm) high-tensile steel
-
Mesh opening: 75 mm × 75 mm (3" × 3") or 76.2 mm × 76.2 mm (3" × 3") square weld
-
Welding: min. 75 % joint strength; no visible cracks after 5× folding
-
Surface finish: hot-dip galvanized to EN ISO 1461 (≥ 260 g/m²) or Galfan Zn-10 %-Al coating (≥ 300 g/m²) for 20-year corrosion-free life Geotextile Liner
-
300 g/m² heavy-duty non-woven polypropylene, UV & puncture resistant
-
Grab tensile strength ≥ 12 kN/m; CBR puncture ≥ 2.2 kN; permittivity 0.05–0.20 s⁻¹
-
Colour: military beige/sand or olive green (other colours on request)
-
Fixed to frame with polypropylene tie-cords every 200 mm; no visible gaps after filling
|
Product Name
|
Defensive barriers ,also named hesco barrier
|
|
Product Type
|
Cloth Gabion Barrier defensive bastion bunkers
|
|
Material
|
Galvanized steel wire or Galfan/zinc-5%aluminum wire
|
|
Wire Diameter
|
4.0-6.0mm
|
|
Geotextile
|
250-600g
|
|
Geotextile colour
|
Beige, Green, etc.
|
|
Mesh hole
|
76.2*76.2mm,50*50mm,75*75mm,100*100mm
|
|
More Information
|
For more product information,please contact us,and we have in stock to support customization.
|
operational principle
It is made of galvanized welded mesh, spring with other fittings, canbe filled with sand,earth,cement, stone, can be used in separate cell or some cells joint together.
Quick Details
Defensive Hesco Barrier Specification
| Model |
Height |
Width |
Length |
Internal Cells |
| KN-1 |
54”(1.37m) |
42”(1.06m) |
32’9”(10m) |
5+4=9 cells |
| KN-2 |
24”(0.61m) |
24”(0.61m) |
4’(1.22m) |
2 cells |
| KN-3 |
39”(1.0m) |
39”(1.0m) |
32’9”(10m) |
5+5=10 cells |
| KN-4 |
39”(1.0m) |
60”(1.52m) |
32’9”(10m) |
5+5=10 cells |
| KN-5 |
24”(0.61m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| KN-6 |
66”(1.68m) |
24”(0.61m) |
10’(3.05m) |
5 cells |
| KN-7 |
87”(2.21m) |
84”(2.13m) |
91’(27.74m) |
5+4+4=13 cells |
| KN-8 |
54”(1.37m) |
48”(1.22m) |
32’9”(10m) |
5+4=9 cells |
| KN-9 |
39”(1.0m) |
30”(0.76m) |
30’(9.14m) |
6+6=12 cells |
| KN-10 |
87”(2.21m) |
60”(1.52m) |
100’(30.5m) |
5+5+5+5=20 cells |
| KN-11 |
48”(1.22m) |
12”(0.30m) |
4’(1.22m) |
2 cells |
| KN-12 |
84”(2.13m) |
42”(1.06m) |
108’(33m) |
5+5+5+5+5+5=30 cells |
| KN-19 |
108”(2.74m) |
42”(1.06m) |
10’5”(3.18m) |
6 cells |
Defensive Barrier Details Specification
1. Wire diameter: 4-5mm
2. Mesh size: 3" (75x75mm,50x50mm)
3. Panel size: 12 type size for any security protection,suddenly burst attacks
4. Geotextile: in heavy duty non-woven polypropylene;
5. Color: Grey and Military Green,Sand color etc.
6. Finish: hot dipped galvanized, Galfan wire.
7. Packing: wrapped with shrink film or packed in pallet
Defensive Barrier Application
1. Environmental Barriers,Flood Barriers, a reliable, easy-to-deploy and robust solution for emergency flood protection or long-term wetland restoration
2. Defensive Barriers: Protecting both military and civilian personnel in dangerous environments demands defensive solutions that are secure, reliable and readily available.
3. Protective Barriers: Protect your workforce,Create a secure refuge for your employees by
providing protection for up to eight people with Accommodation Bunker.
4. Rockface: transforms the highly effective wall into an aesthetically pleasing structure ideal for customer-facing perimeter security where a more benign appearance is required.
Defensive Barrier Features
1. having a Galfan coated steel mesh framework
2. integrated cells to provide internal structural integrity.
3. exceptional strength and structural integrity
4. High tensile and anti-impact capability
5. making transportation efficient and rapid
