Galvanized Steel Bto-22 Razor Barbed Wire for Protecting Mesh Concertina Razor Wire Coils

Galvanized Steel Bto-22 Razor Barbed Wire for Protecting Mesh Concertina Razor Wire Coils

Großes Bild :  Galvanized Steel Bto-22 Razor Barbed Wire for Protecting Mesh Concertina Razor Wire Coils

Produktdetails:
Herkunftsort: HB
Markenname: KN
Zertifizierung: ISO, PVOC,SASO,FORM A, FORM E,CO
Modellnummer: BTO-22, CBT-60, CBT-65, BTO-16, CBT-30
Zahlung und Versand AGB:
Min Bestellmenge: 28 Tonnen
Preis: Negotiated
Verpackung Informationen: Wasserfestes Papier + gewebter Stoff
Lieferzeit: 7 Werktage
Zahlungsbedingungen: T/T, Western Union, MoneyGram, Handelsversicherung
Versorgungsmaterial-Fähigkeit: 28T pro Tag
Ausführliche Produkt-Beschreibung
Material: Stahldraht, verzinktes HDP-Blech Oberflächenbehandlung: Feuerverzinkt, Edelstahl
Das Leben nutzen: über 10 Jahre Anwendung: Grenzschutzzaun, Gefängniszaun
Rasierertyp: Einzelrasierer, Kreuztyp, Flachtyp Probe: Frei
Typ: BTO-22, BTO-16, BTO-18, CBT-65, CBT-30 Paket: Holzpalette, wasserfestes Papier
Außendurchmesser: 45–110 mm Aktie: 22 Behälter
Hervorheben:

galvanized steel razor barbed wire

,

Bto-22 concertina razor wire

,

protecting mesh razor wire coils

Galvanized Steel Bto-22 Razor Barbed Wire for Protecting Mesh Concertina Razor Wire Coils





Product Overview

Maximum Security | Heavy-Duty Galvanized | Pre-Engineered for Critical Infrastructure

Our High Security Razor Ribbon Barbed Wire Coils are engineered to provide an impenetrable physical barrier for high-risk zones like international borders, airport perimeters, military bases, and correctional facilities. Fabricated from high-tensile steel wire and razor-sharp blades, it offers the ultimate deterrence against unauthorized entry and intrusion.



Standard single-wire options are vulnerable to sagging over long distances or snapping under mechanical leverage. Our Weatherproof Double Strand Razor Barbed Wire integrates two high-tensile steel lines twisted seamlessly together. This architectural upgrade alters your boundary security in three distinct ways:

  • Anti-Sag Integrity: The interwoven double-strand core evenly distributes tension across long spans, keeping the mesh upright, tight, and uniform without constant maintenance or readjustments.

  •

  • Dual Cutting Resistance: An intruder attempting to breach the perimeter faces twice the cutting resistance. Standard hand-held bolt cutters struggle against the dual-core spring steel mechanism.

  •

  • True Weatherproofing: Every square inch undergoes premium hot-dip zinc galvanization, shielding the core steel from localized rust, intense UV exposure, and freezing winter rain.

Specification
Razor Wire Size Specifications
Peference Model
Thickness (mm)
Wire Diameter (mm)
Barb Length
(mm)
Bard Width
(mm)
Bard Spacing
(mm)
BTO-12
0.5±0.05
2.5±0.1
12±1
15±1
26±1
BTO-15
0.5±0.05
2.5±0.1
18±1
15±1
33±1
BTO-22
0.5±0.05
2.5±0.1
02±1
15±1
34±1
BTO-28
0.5±0.05
2.5±0.1
28
15
45±1
CBT-30
0.5±0.05
2.5±0.1
30
18
45±1
CBT-60
0.6±0.05
2.5±0.1
60±2
32±1
100±1
CBT-65
0.6±0.05
2.5±0.1
65±2
21±1
100±1
Outside Diameter
No. of Loops
Standard Length per Coil
Razor Type
Notes
450mm
33
7M-8M
CBT-60, 65
Single Coil
500mm
56
12M-13M
CBT-60, 65
Single Coil
700mm
56
13M-14M
CBT-60, 65
Single Coil
960mm
56
14M-15M
CBT-60, 65
Single Coil
450mm
56
8M-9M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
500mm
56
9M-10M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
10M-11M (3clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
600mm
56
8M-10M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
700mm
56
10M-12M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
800mm
56
11M-13M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
900mm
56
12M-14M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
960mm
56
13M-15M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
980mm
56
14M-16M (5clips)
BTO-10, 12, 18, 22, 28, 30
Cross Type
    • High-level Perimeter Protection



      This factory-direct razor barbed wire serves as an ideal wall-top security barrier. It effectively blocks unauthorized entry and reinforces overall safety for residential, industrial and commercial premises.



    • Superior Weatherproof Durability



      Made of premium stainless steel material, this razor wire features excellent rust and corrosion resistance. It stays stable and maintains reliable performance year-round under all outdoor weather elements.



    • Anti-climb Security Design



      Adopting single coil razor structure, it greatly raises the difficulty for trespassers to climb over or damage the fence. It strongly discourages illegal access and keeps your boundary fully secured at all times.



    • Hot-dip Galvanized Anti-rust Finish



      With professional zinc galvanized surface treatment, the wire gains solid anti-corrosion protection. It optimizes the fence’s exterior look as well as prolongs its service lifespan significantly.



    • Labor-saving & Flexible Installation



      Thanks to its coiled structure, the razor wire can be installed quickly and effortlessly. It fits multiple application scenarios perfectly and is compatible with most existing fence systems for easy retrofitting.

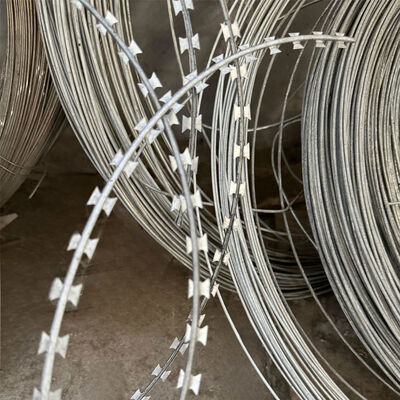

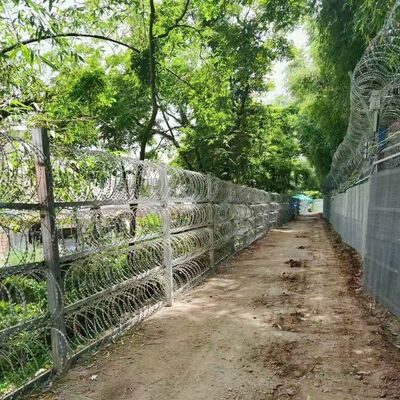

Details of Razor Wire:

Galvanized Steel Bto-22 Razor Barbed Wire for Protecting Mesh Concertina Razor Wire Coils 0

Galvanized Steel Bto-22 Razor Barbed Wire for Protecting Mesh Concertina Razor Wire Coils 1

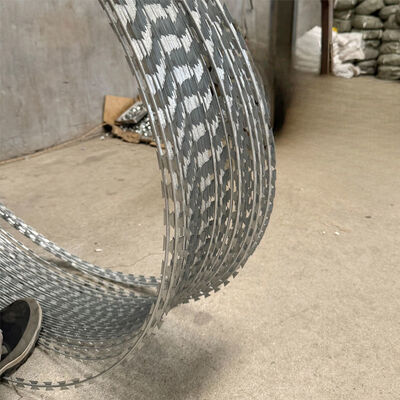

Packing & Delivery:



1. sheet is packed by pallet or strapped into bundle.
2. sheet in carton or wooden case.
3. rolls in water-proof paper+plastic film.

Galvanized Steel Bto-22 Razor Barbed Wire for Protecting Mesh Concertina Razor Wire Coils 2
